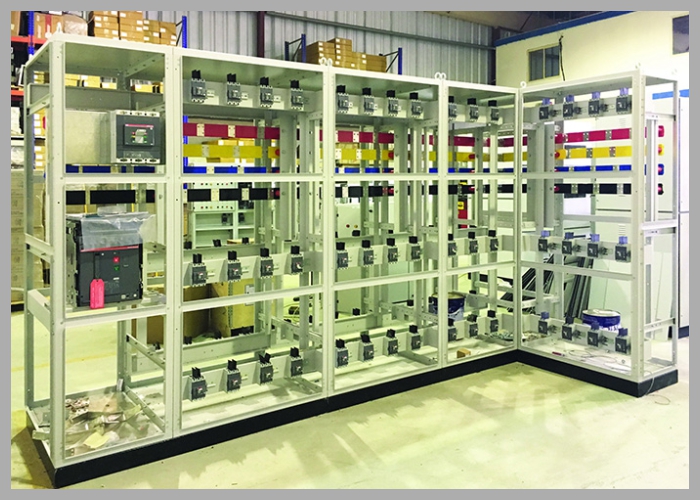

Metering Panels are used to centralize the operation, verification and recording readings of the energy consumptions for domestic as well as Industrial users, with ready to fix provisions for Electricity Directorate Energy Meters.

  • Rated insulation voltage up to 1000V
  • Rated Voltage 690V AC.
  • Main busbars up to 6300A
  • Neutral busbars are rated up to 100% of the main busbar and Earth busbars are rated up to 100% of the Neutral busbar
  • Forms of internal separation from Form 1 to Form 4b
  • Designed for Ambient temperature up to 50 °C
  • Sheet steel epoxy powder coated to light grey semi-gloss as per RAL 7035 with an average 65 microns paint thickness. Option of your choice of finish
  • available for indoor & outdoor applications,
  • Busbars from HDHC Tin Plated Copper 99.99% purity
  • Standard rating of IP43, IP54 available on request
