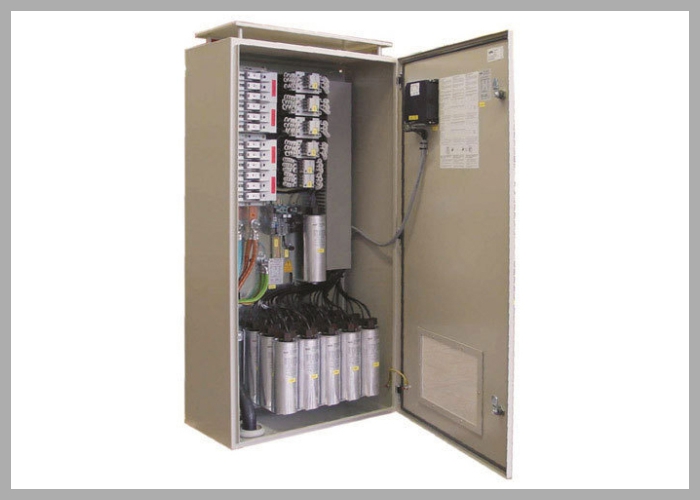

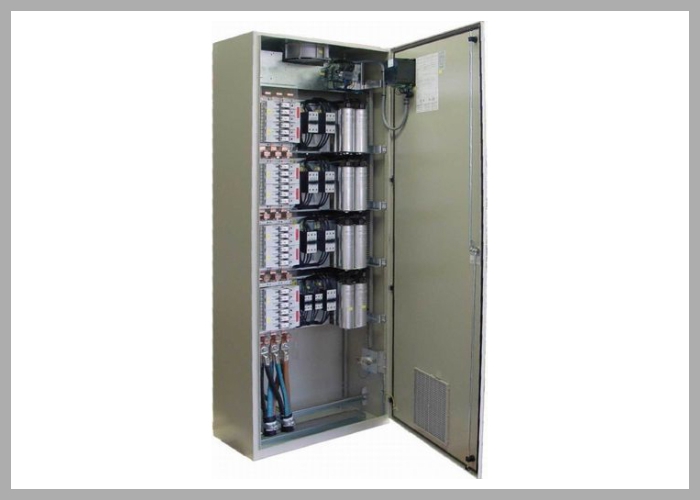

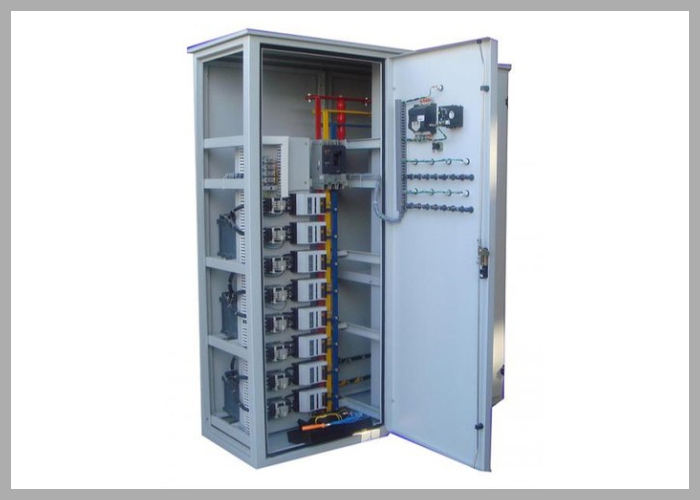

AUTOMATIC POWER FACTOR CORRECTION PANEL (APFC)

The power factor correction panels are designed to improve the power factor in electrical systems while ensuring energy and cost efficiency. The benefits include power factor correction, poor power factor penalty utility bill reductions, voltage support, release of system capacity, and reduced system losses. Power Factor can be explained as ratio of active power to apparent power and it is a key factor in measuring electrical consumption.

APFC Panels becomes indispensable in those industries where electrical installations are meant to supply to large electrical load. A dip in Power Factor can attract operational losses and a penalty from electricity board, responsible for electricity supply.

There are two types of APFC Panels,
1. APFC Panel (Without Harmonic Filter) 2. APFC Panel With Series Reactor (With Harmonic Filter)

  • Consistency in Power Factor under fluctuating load conditions.
  • Maintenance Free
  • Elimination of Power factor penalty
  • Prevention of leading power factor
  • Material: Manufactured from 1.5/2mm Electro-Galvanized Steel Sheet.
  • Modular design, Non-compartmentalized
  • Finish: Standard RAL-7035. Other color can be provided as per requirement
  • Indoor, Floor mounted, Cable entry from bottom.
  • Minimum joints hence better reliability and lower losses.
  • Incomer MCCB, 3 pole With Extended Rotary Handle for Operation without need of door opening.
  • Padlocking & Door Interlock Facility.
  • Step switching
  • Capacitor duty contactors with Damping Resistors, IEC 60947-4-1/5-1.
  • Microprocessor controlled relay
  • Can be interfaced with the Building Management System (BMS) for monitoring and controlling
  • Capacitors - Standard/Heavy Duty type, IEC 60831-1+2, UL 810 5th Edition.
  • Manufactured: Form 2.
  • Rated operating voltage up to 690V.
  • Suitable for both internal & external mounting (Weather Proof with Canopy).
  • Adequate spacing for incoming and outgoing cables.
  • Panels for front or rear access to suit application.
  • Degree of protection: Upto IP65.
  • Maximum safety & reliability.
  • Fans with Filters & Louvers for Ventilation inside APFC panel.
  • Custom design according to client requirements.
