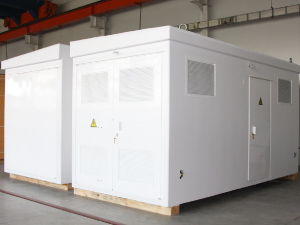

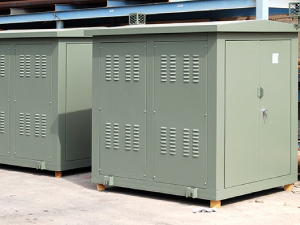

Package Substations

Package Substation is a combination of Ring Main Unit, Transformer and Low Voltage Panel. These substations are used for effective electrical power distribution in medium voltage and low voltage distribution systems. Ascon has the ability to provide complete outdoor package substations incorporating Transformers (oil immersed or hermetically sealed), medium voltage Ring Main Units (RMU)/SF6 switchgear and LV switchgear.

Technical Data
Standards Comply with EDD Specification or any other Project Specification
Ratings Upto 3000KVA, 11KV/415V AC, 50Hz, 3 Phase
LV Incoming ACB/MCCB/Isolator
Outgoing MCCB/Fuse Switch/Fuse Carrier
Thickness Minimum sheet thickness 2.00mm with adequate ventilation
Finish Highly durable Polyester Powder Coated
