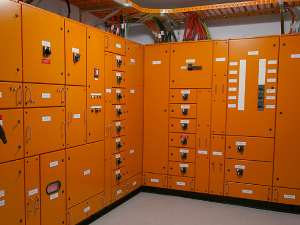

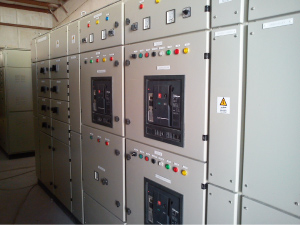

Main Switchboards are designed and manufactured for indoor or outdoor application; the degree of protection is in accordance with IEC 60529.
For the group mounted or individually mounted main and feeder devices, the internal separation varies from Form 1, Form 2A, Form 2B, Form 3A, Form 3B, Form 4A and Form 4B.
Technical Data | |
---|---|
Standards | Comply with IEC 60439-1/61439 |
Ratings | Upto 6300A, 415V AC, 50Hz, 3 Phase |
Incoming | ACB - Fixed/Drawout |
Outgoing | ACB/MCCB |
Metering | Ammeter, Voltmeter, Energy Meter or any other required |
Construction | Minimum Sheet Thickness 1.50mm |
Finish | Highly durable Polyester Powder Coated |
